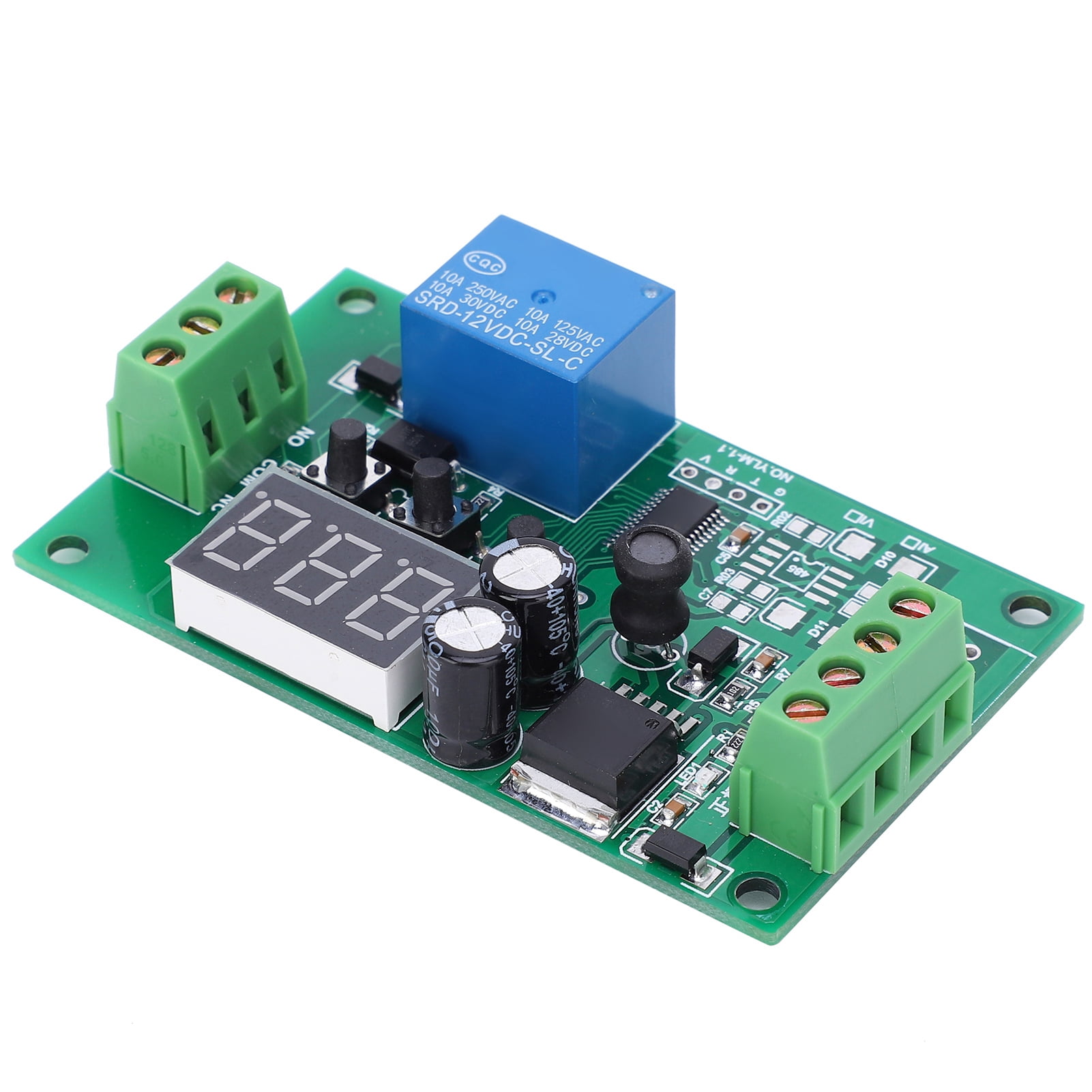

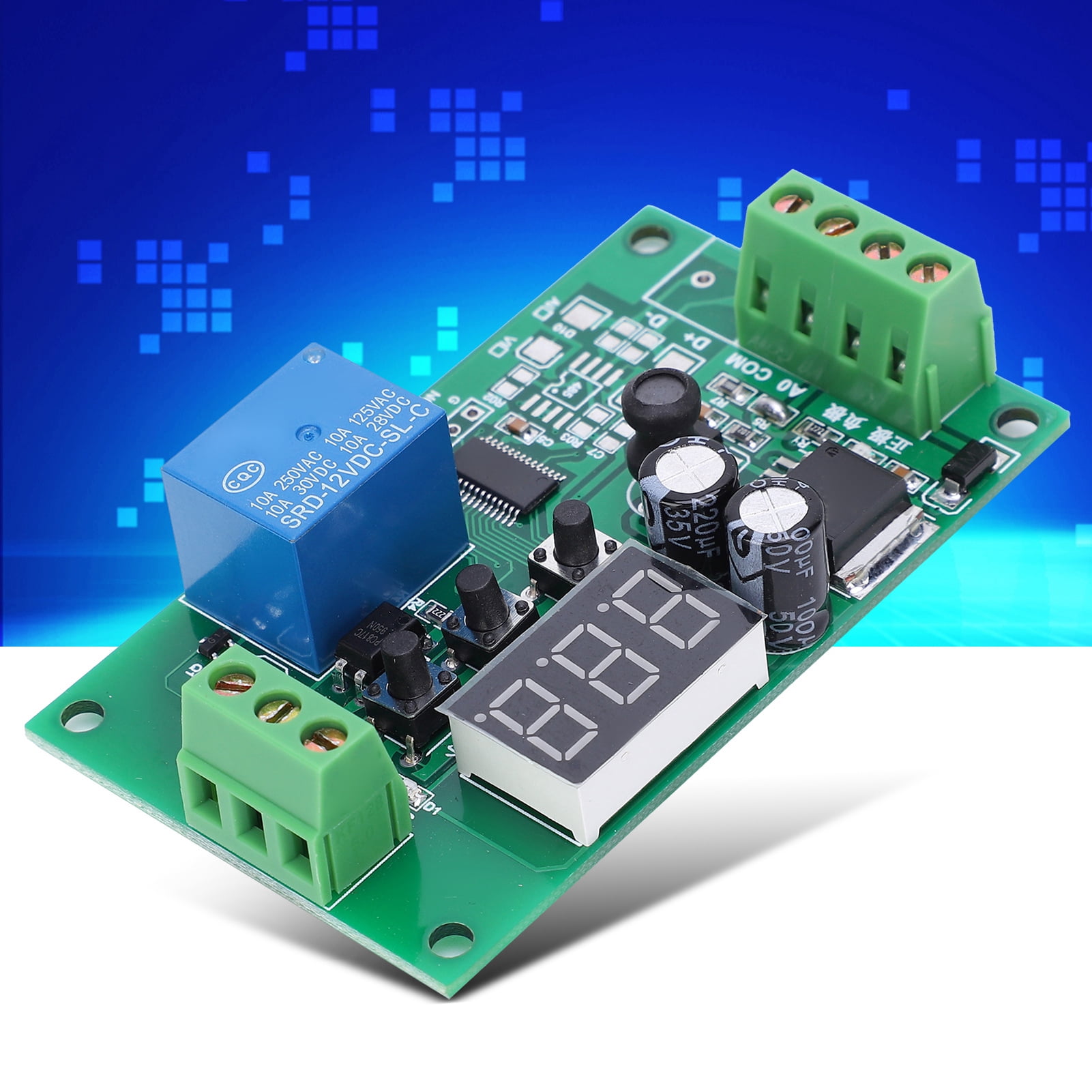

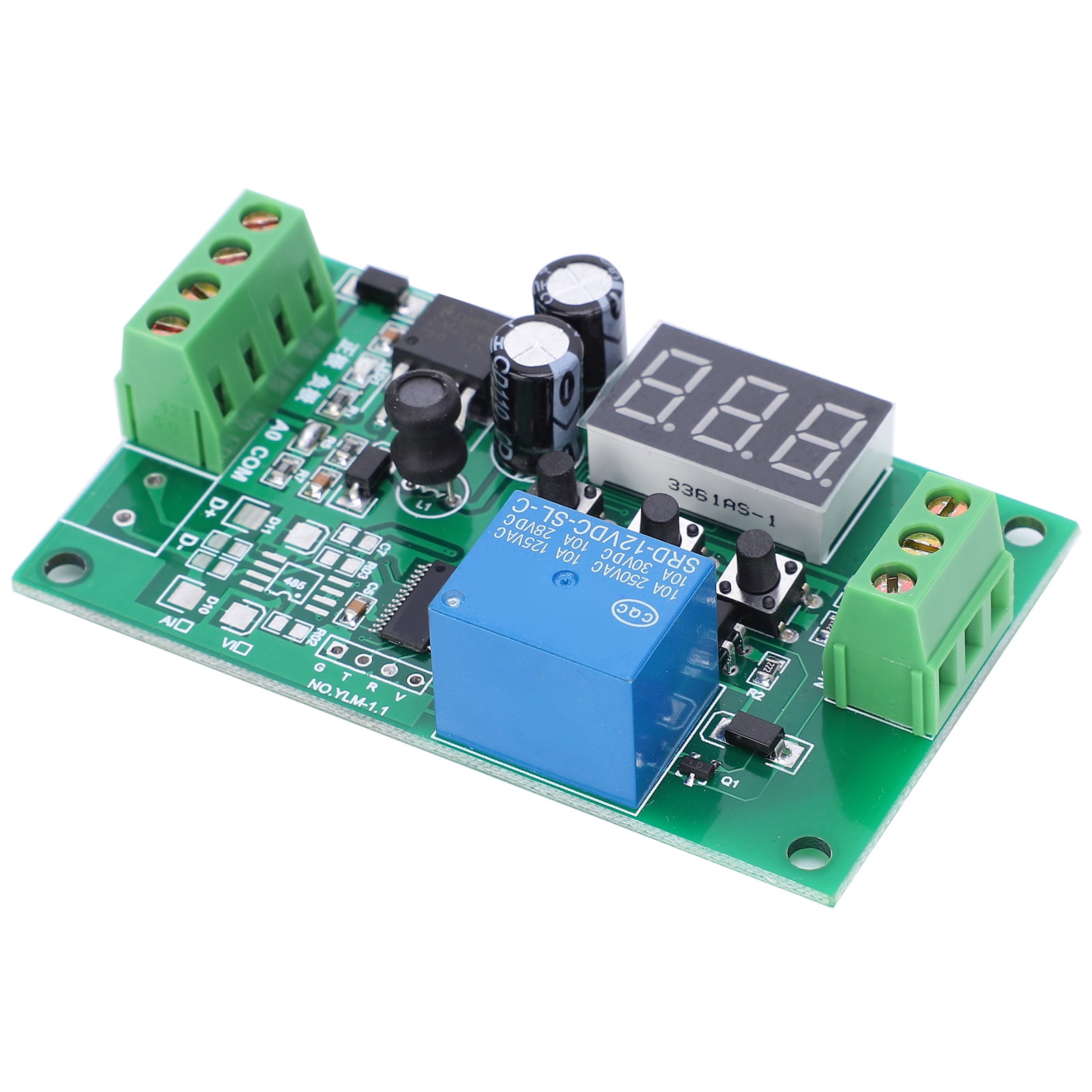

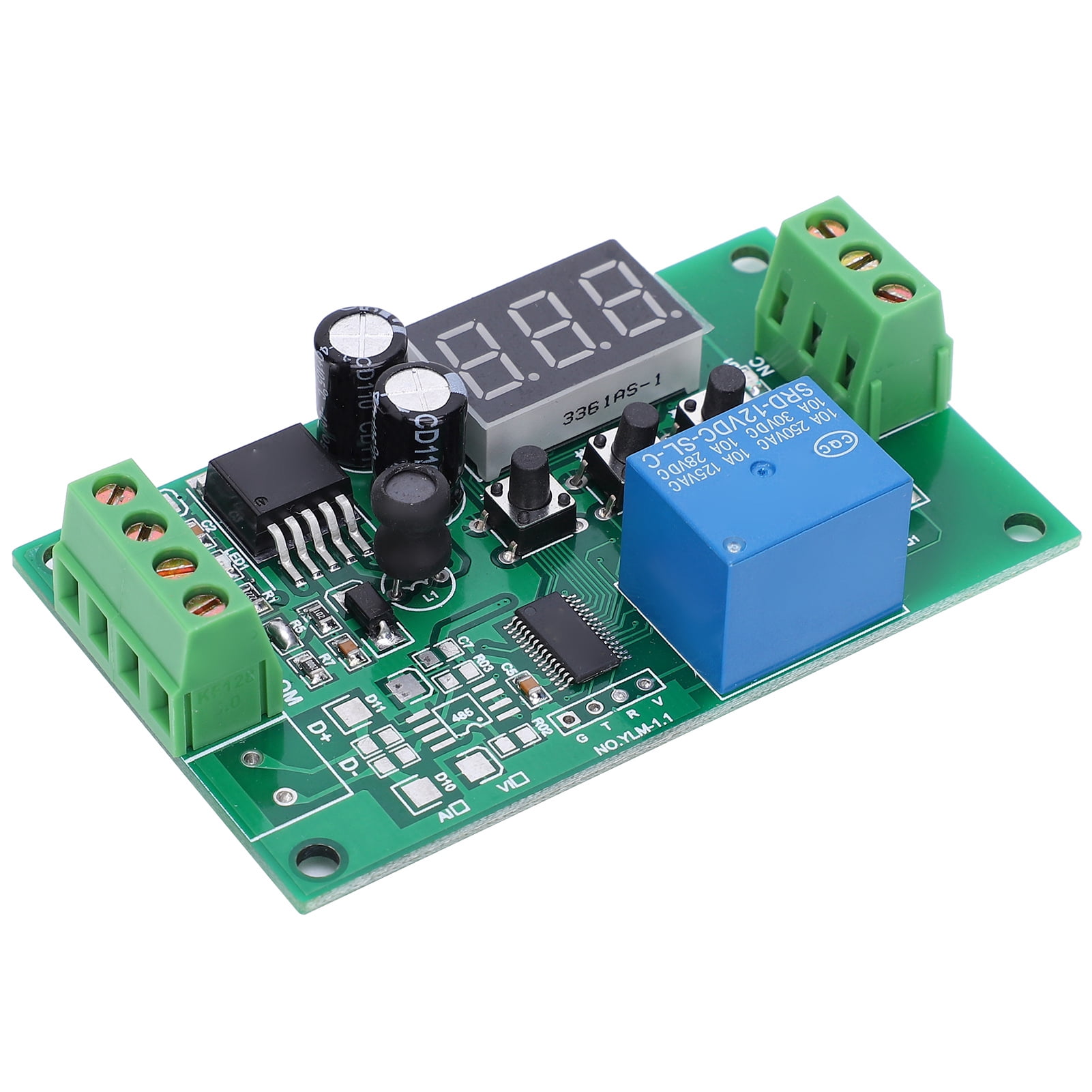

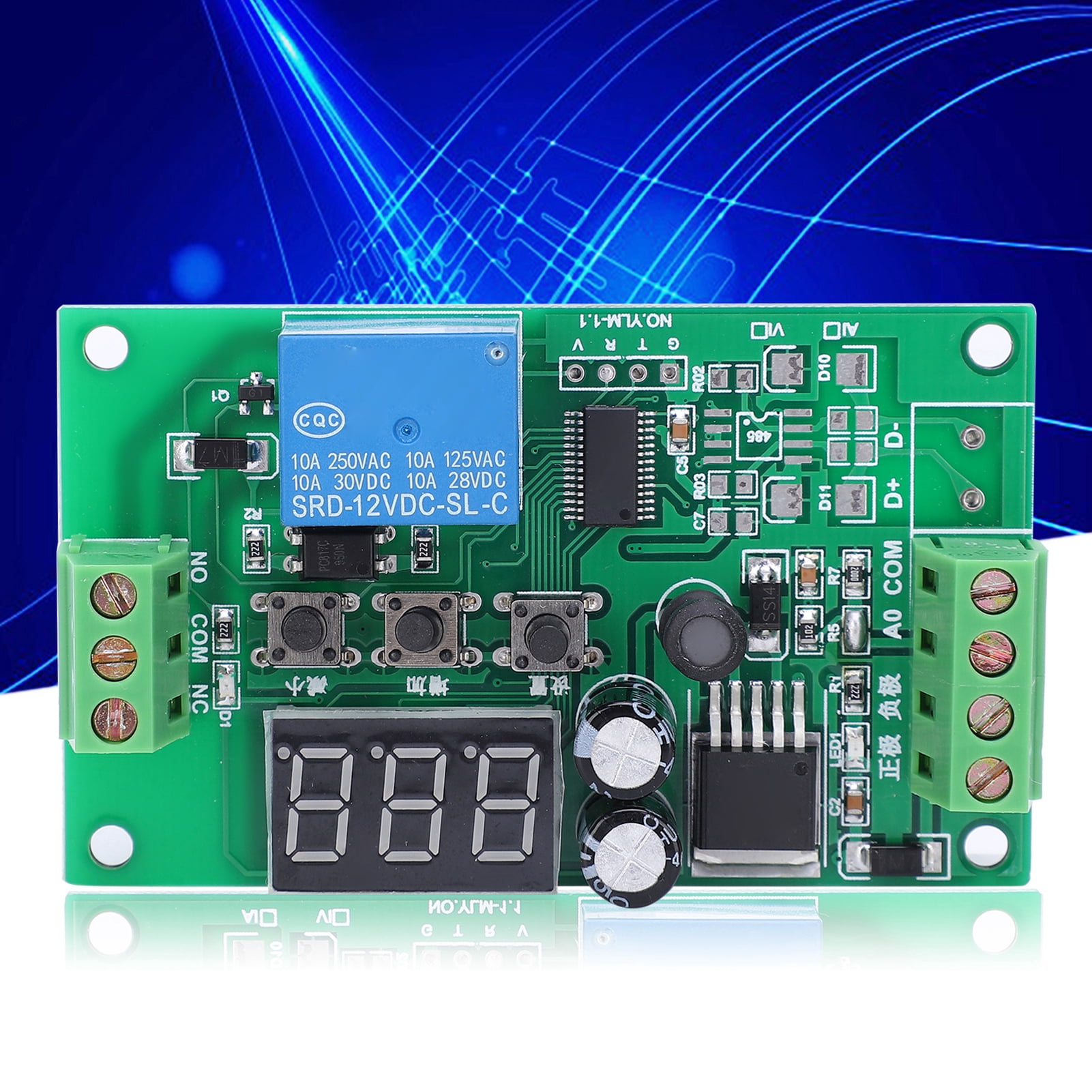

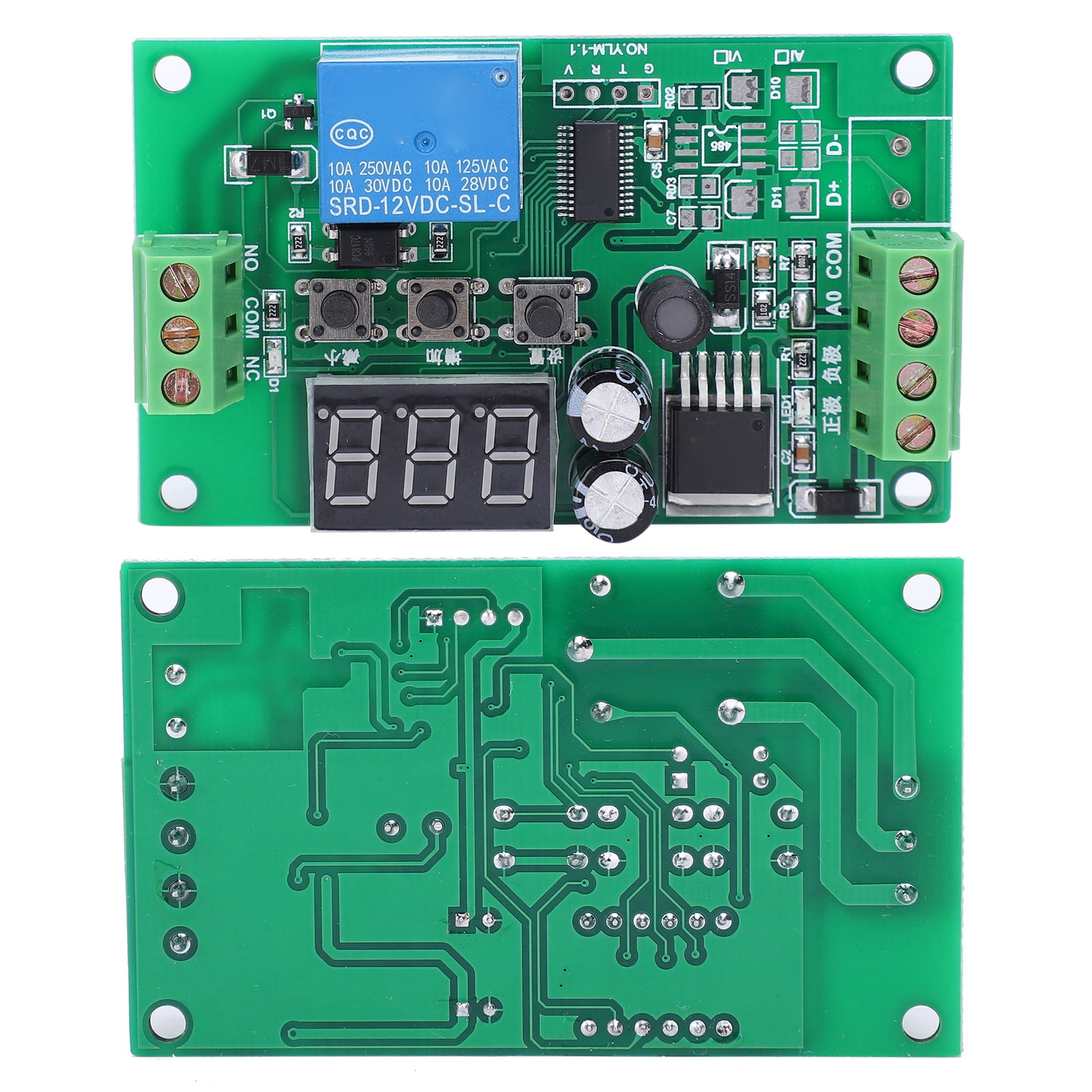

Led Electronic Current Detection Sensor Module Digital Display 4-20mA Relay Module Component DC12V
Item #:
122698138
LYD 118
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from US
0 ratings
Write a review
In stock
Imported from USA store
QTY:
Only 3 items left in stock.
Order now and get it around Sunday, November 08
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Product Details
- electronic Current Detection Sensor Module Digital Display 4-20mA Relay Module Component DC12VSpecification: Item Type: Current Detection Sensor Module Material: PCBWorking Current: Standby: 12mA, Working: 56mAWorking Voltage: DC12VDigital Display Life: Greater than or equal to 50,000 hoursRelay Life: Less than or equal to 100,000 timesDigital Tube: 3 in 1Working Temperature: -20 degrees Celsius ~75 degrees Celsius Measuring Range: 0-25mADetection : 4-20maProduct Features: 4-20ma Current Detection: After the module is powered on, the PX is initially displayed and the currently set mode is displayed. At this time, the mode can be adjusted by pressing the + and - buttons. It will enter the real-time display of the measured current after 4s. Three buttons to set the upper and lower limits and function mode selectionInterface Description: InputPositive Pole: Connect to the positive pole of the power supplyNegative Pole: Connect to the negative pole of the power supplyAO: 4-20ma inputCOM: It is connected to the negative pole of the power supplyOutputNO: NO endCOM: PublicNC: NC endSeveral Modes Can be Set as Follows: Long press - for 3s to enter the adjustment modeP-1: Suction exceeds the set value, but is disconnected below the set value; the measured value exceeds the lower limit value and the relay suctions, and disconnects below the lower limit value.P-2: Disconnect when the value exceeds the set value, but is lower than the suction; when the measured value exceeds the lower limit, the relay is disconnected, and the suction is lower than the lower limit.P-3: Suction in the interval and disconnected outside the interval; the measured value is between the upper limit and the lower limit and the relay sucks, otherwise it is disconnectedP-4: Disconnected in the interval, sucked outside the interval; the relay is disconnected between the upper limit and lower limit of the measured value, otherwise suckedP-5: Disconnect below the lower limit, and absorb the upper limit; when the measured value exceeds the lower limit, the relay will disconnect, and the relay will absorb the upper limit.P-6: Suction is lower than the lower limit, and it is disconnected the upper limit; the measured value exceeds the lower limit and the relay is suctioned, and the relay is disconnected the upper limit.Setting Instructions for The Convenience Of Description, Use K1 For The setting key, K2 for the + key, and K3 for the-key: Key Description: K1 /adjust; K2+; K3-/mode selectionPress the K1 key, the first digit flashes, adjust the lower limit of hundreds, press K2, K3 to adjust 0~1 changePress the K1 button, the second digit will flash, adjust the tens digit of the lower limit, press K2, K3 to adjust 0-9 changesPress K1 key, the third lower third digit flashes, adjust the lower limit one digit, press K2, K3 to adjust 0-9 changePress the K1 key, the 4th, lower, and fourth digits will flash, adjust the upper limit of hundreds, press K2, K3 to adjust 0~1 changesPress K1 key, the 5th bottom fifth digit flashes, adjust the upper limit ten digits, press K2, K3 to adjust 0-9 changesPress K1 key, the 6th, lower and sixth digits will flash, adjust the upper limit one digit, press K2, K3 to adjust 0-9 changesPress the K1 key for the 7th time, the digital tube is not flashing, it displays the measured current value Package List: 1 x Current Detection Sensor Module
| Amps | 12 mA |
| Input voltage | 12 Volts |
| Brand | Fyydes |
| Size | 3.15" x 1.97" x 0.79" |
| Assembled product weight | 1 lbs (450 grams) |
| Has written warranty | No |
| Multipack quantity | 1 |
